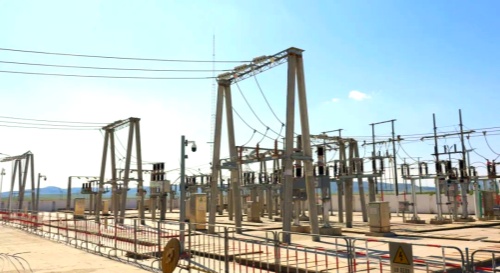

10kV Substation Commissioning: What Should Be Checked?

2026-09-22 10:31:59

Commissioning is the final technical stage before a 10kV power substation enters normal operation. It confirms that the equipment has been installed correctly and that protection, control, and switching functions operate as designed.

Factory testing is important, but site commissioning is still necessary because transportation, installation, and field wiring may affect equipment performance.

Visual and Mechanical Checks

The commissioning team should inspect:

• Equipment condition and alignment

• Cable and busbar connections

• Grounding conductors

• Mechanical fasteners

• Enclosure sealing

• Interlocking mechanisms

• Labels and warning signs

• Transformer ventilation or oil level

Electrical Testing

Typical electrical tests may include:

• Insulation-resistance testing

• Contact-resistance testing

• Transformer ratio testing

• Winding-resistance testing

• Cable testing

• Circuit-breaker timing

• Current-transformer polarity checks

• Grounding-system measurement

Protection Relay Testing

Relay settings should match the approved protection study. Testing should confirm alarm signals, trip commands, event recording, and communication functions.

Functional Testing

The full operating sequence should be checked, including breaker opening and closing, local and remote control, emergency trips, interlocks, status indications, and SCADA communication.

Documentation

Test reports, wiring diagrams, protection settings, equipment certificates, and operating instructions should be completed before energization.

Conclusion

A structured commissioning process reduces start-up risk and helps prevent early equipment failure. It confirms that the 10kV substation is mechanically complete, electrically safe, and ready for reliable operation.
